Jack Female 2 Holes Flange Mount RoHS SMA RF Connector

Name: Jack Female 2 Holes Flange Mount RoHS SMA RF Connector
Brand: ELT (Elite)
Price: 1 USD

Quality Jack Female 2 Holes Flange Mount RoHS SMA RF Connector wholesale

Brand Name : ELT (Elite)

Model Number : SMA-KFD5A

Certification : CE ROHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,000 Pieces Per Month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Product name : SMA RF Coaxial Conector

Plating : Gold Plated

Impedance : 50Ω

Frequency : DC~18GHz

Durability : 500 Cycles

Application : RF, Satcom /antenna/Audio

Material : Brass

Certificate : ROHS, ISO-9001-2015

Vswr : ≤1.3

Contact Now

Jack Female 2 Holes Flange Mount SMA RF Coaxial Connectors

High Performance SMA RF Connectors:

1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).

Key Features of SMA RF Connectors:

Frequency range up to 18GHz Sub-miniature coaxial connectors

Using a threaded interface

Available in passivation or gold plating

Brass and stainless steel material options

Wide variety of orientations and PCB terminations

Available in straight or right angle versions

With bulkhead 2 holes panel, 4 holes panel or mountless options.

Broad range with male, female and adapters variants.

RoHS compliant

Jack Female 2 Holes Flange Mount RoHS SMA RF Connector

Specifiacation:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.2(DC-6GHz)
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

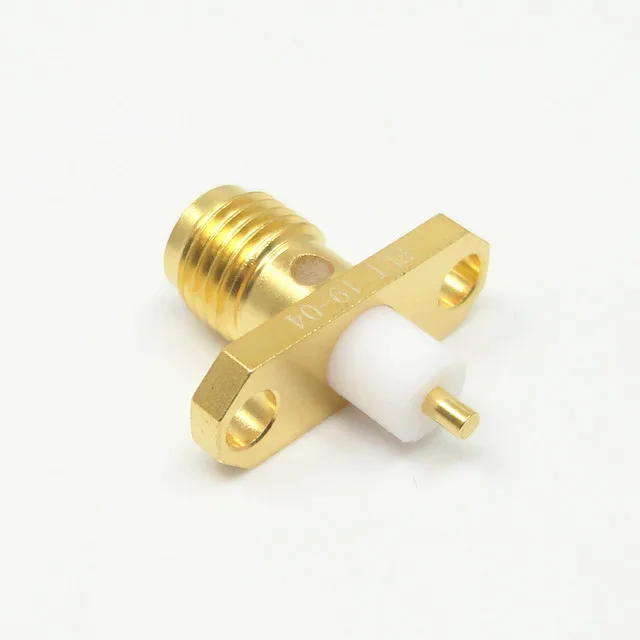

More Detail of Jack Female 2 Holes Flange Mount SMA RF Coaxial Connectors:

Jack Female 2 Holes Flange Mount RoHS SMA RF Connector

Applications:

Microwave Systems Telecommunications
5G Solutions
Measurement Systems
Mobile Telephone WiFi Antennas Systems

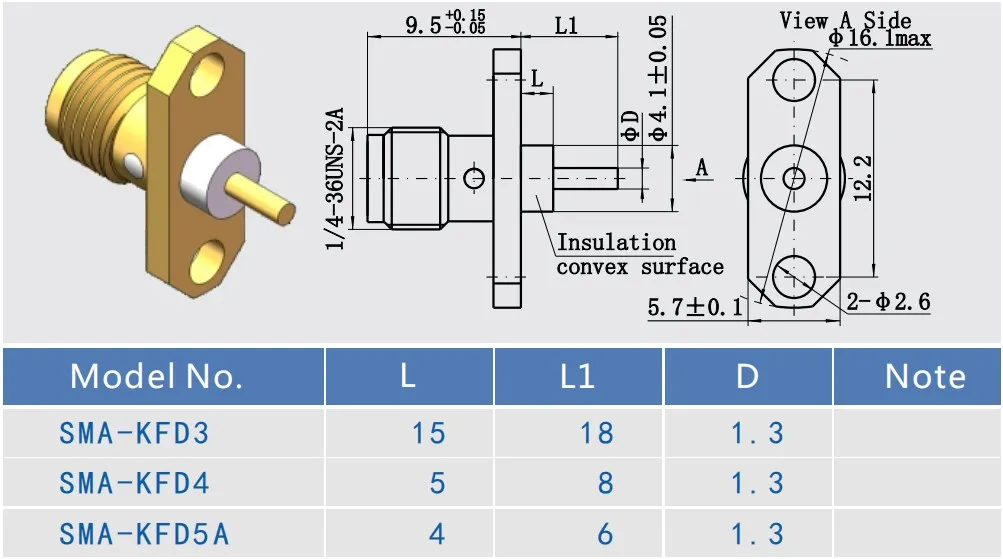

Interface Dimentions:

Jack Female 2 Holes Flange Mount RoHS SMA RF Connector

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
